Alternative Views:	List Price: $7,720.00 Our Price: $7,720.00 Product Code: HDS-14 Qty:

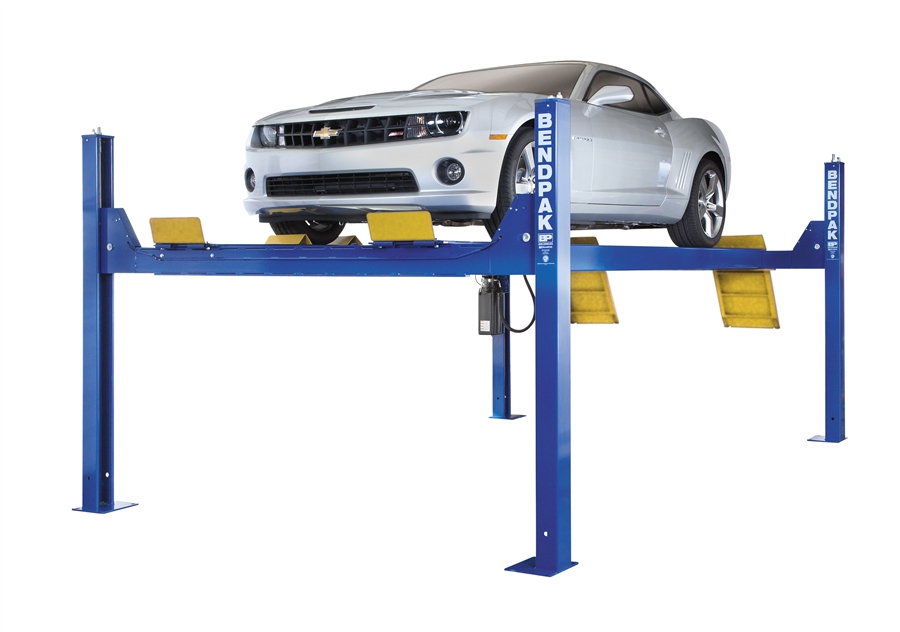

Description Technical Specs   The HDS-14, HDS-14X and the Super-Tall HD-14TL four-post models provide a generous 14,000-lb. lifting capacity and feature extended runways to accommodate a wide variety of vehicle wheelbases. Lifting capacity*: 14,000 lbs. / 6,350 kg *Max capacity / front axle: 7,000 lbs. / 3,175 kg *Max capacity / rear axle: 7,000 lbs. / 3,175 kg Overall width: 130" / 3,301 mm Outside length: 213" / 5,408 mm Overall length: 241" / 6,131 mm Height of columns: 93" / 2,362 mm Runway min height: 7-5/8" / 192 mm Max rise: 70" / 1,778 mm Max lifting height: 77-5/8" / 1,970 mm Width between posts: 120" / 3,046 mm Runway width: 20" / 508 mm Width between runways: 37-1/2" � 51" / 952 mm � 1,295 mm Runway centerline: 57-1/2" - 71" / 1,460 mm - 1,803 mm Outside edge of runways: 77-1/2" - 91" / 1,968 mm - 2,311 Drive-thru clearance: 98" / 2,482 mm Length of runways: 199" / 5,054 mm Min wheelbase @ rated capacity: 140" / 3,556 mm Min wheelbase @ 75% capacity: 120" / 3,048 mm Min wheelbase @ 50% capacity: 100" / 2,540 mm Min wheelbase @ 25% capacity: 80" / 2,032 mm Locking positions: 13 Lock spacing: every 4" / 102 mm Lifting time: 60 sec Motor: 220 VAC / 60 Hz / 1 Ph Shipping weight: 2,105 lbs. / 955 kg Shipping dimensions: 204" x 22" x 40" / 5,182 mm x 559 mm x 1,016 mm Features 14,000-lb. lifting capacity Mid- to long-style approach ramps for low ground clearance vehicles Runways include rail-kit for optional accessories Single hydraulic cylinder mounted underneath runway Fully enclosed lifting cables, safety locks, and sheaves Internal anti-sway slider blocks in each column Pneumatic push-button safety release Features heavy-duty 1/2" aircraft cable Safety locks enclosed in columns minimize pinch points Oversized sheave diameter reduces cable fatigue Oversized self-lubricating cable rollers Rugged 1-3/4" roller axles Multi-position safety locks in each column Customizable power unit location Approach ramps incorporate built-in rear-wheel chocks Independent backup slack-cable safety latches Runways feature non-skid surface Optional drive-thru ramps available Optional drip trays available Optional 7,000-lb. capacity rolling jacks available (Model RJ-7) ETL approved
