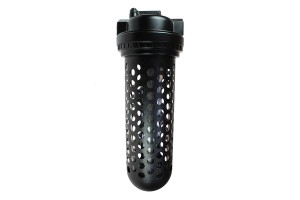

Desiccant Air Dryer, 1/4" Port Size.

Although much of an air line's liquid condensate can be removed through the use of filters, driplegs and drain traps, water vapor and aerosols will remain in the line. The most reliable and cost efficient method of removing this residual vapor and aerosol is with a desiccant air dryer. These units are especially effective for protecting laboratory instrumentation, spray painting and air lines that are exposed to freezing conditions.

Maximum Supply Pressure: . . . . . .150 PSI
Maximum Operating Temperature: .125� F
Maximum Continuous Air Flow: . . .10 SCFM
Atmospheric Dew Point: . . . . . . . . .-45� F

Material:
Body . . . . . . . . . . . . . . . . . . . . . . . . . .Die-cast zinc
Bowl . . . . . . . . . . . . . . . . . . . . . . . . . .Polycarbonate
Bowl guard . . . . . . . . . . . . . . . . . . . . .Steel

Dimensions and Weights:
Height . . . . . . . . . . . . . . . . . . . . . . . . .12.25"
Width (port to port) . . . . . . . . . . . . . . .4.5"
Weight (with desiccant) . . . . . . . . . . .6.8 lbs.

Ordering Information:
1/4" port . . . . . . . . . . . . . . .8422
3/8" port . . . . . . . . . . . . . . .8423
1/2" port . . . . . . . . . . . . . . .8424
Desiccant gel refill . . . . . . .8422-GEL
